The Chevrolet and GMC B-Series was a Class 7 medium duty cowled chassis produced by General Motors for the school bus industry. The B-Series was introduced for the 1966 model year. Production of the B-Series ended in 2003; after 1992, it was exclusively bodied by Blue Bird Corporation.


Chevrolet/GMC B-Series
GM B-Series

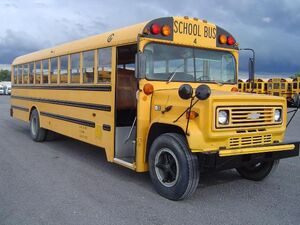

A 1980's Carpenter based Chevrolet B-Series and a 1990's Blue Bird CV200

Manufacturer

Chevrolet

GMC

Proudction

1966-2003

Class

School Bus

Transit Bus

Engines

Gasoline

Diesel

Propane

Related

GMC Topkick





























HistoryEdit

1966-1970

1960's GM Bus

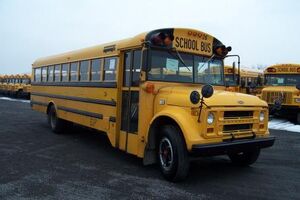

A 1966-1970 GMC B-Series Bodied by Ward

In 1966, while Chevrolet continued to manufacture the B-Series on a medium duty design based upon their full-sized pickups, GMC moved their B-Series chassis to the H/J series line. This design of truck was the predecessor of the 1978 GMC Brigadier and Chevrolet Bruin. The entire front fascia was fabricated out of steel, and featured butterfly-access panels for servicing. This generation of B-Series offered GMC's gasoline V-8, diesel V-6 (Detroit Diesel), and gasoline inline-6 engines.

GM produced a different B-Series chassis for Chevrolet and GMC until 1971. GMC's medium-duty truck had been reintroduced onto the C-Series line in 1969. However, GM bus chassis production lagged behind truck redesigns, delaying the redesigned GMC to 1971.


1971-1991

GM B-Series Pre Face

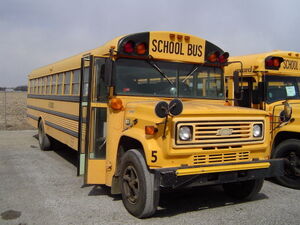

The 1971-1984 Version

GM B-Series Post Face

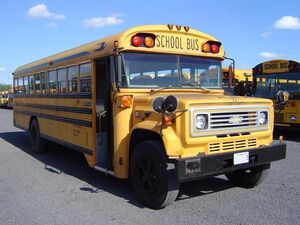

The 1985-1991 Version

When GMC's medium duty line moved back from the H/J line to a modified variant of their full-sized pickup truck in 1969, so too did the B-Series, albeit in 1971. The only external change to the chassis was a different front clip, which also mandated a different dashboard design. Engine options consisted of the 5.7L, 6.0L, and 7.0L gasoline V8. Later, the Detroit Diesel 8.2L V8 was offered, as well as a turbocharged variant. Transmissions were almost always 4 or 5 speed manuals, although the Allison AT545 4-speed automatic transmission was also offered.

While GM replaced its medium duty trucks in 1973, the B-series continued to be based upon the previous generation of medium duty conventionals. In fact, this continued to be the case until 1984, when GM finally updated the B-Series to match; the tilt-forward cowl was added. However, the changes were limited to the outside; the steering column and dashboard were carryover. Little, if any, change occurred to the powertrain options for this generation.

1992-2003

In 1992, the GMT 530 chassis was adapted to become the next-generation B-Series. This chassis was introduced in 1989 under the GMC TopKick and Chevrolet Kodiak names.

Both gasoline and diesel engines were offered on this generation of B-Series. A 6.0L V8 gasoline engine was offered, allowing potential LPG (propane) or CNG conversion. Late in the 1990s, the 366 V8 was retired in favor of a 454 cubic inch (7.4L) V8; GM was the last manufacturer to offer a gasoline engine in a full-size school bus. Caterpillar 3116 turbocharged six-cylinder diesels were offered as well. Transmissions were always Allison automatics.

When GM replaced the GMT 530 series of medium duty conventionals with the GMT 560 series in 2003, no direct replacement for the B-Series was offered. GM has, however, offered cutaway cabs on their Class 4 and Class 5 models, allowing for body builders to add bus bodies in the same manner (and design) as they would on the full-size van cutaways.


AvalabilityEdit

GM B-Series School

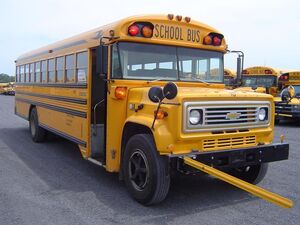

A Chevrolet B-Series with a Blue Bird Body

The B-Series chassis was used by a variety of manufacturers and was popular for the availability of both gasoline and diesel engines. Until 1991, the B-Series was available to all manufacturers. However, in a move that crippled GM's marketshare of the schoolbus market, GM signed an agreement with Blue Bird Corporation for 1992. Under the terms of the agreement (which lasted 10 years), Blue Bird became the only body manufacturer allowed to build buses on the new B-Series chassis and would also be responsible for all distribution and service. The resulting model was named the CV200, and while the GM B-7 chassis was standard, Navistar International and Ford (and later, Freightliner) chassis were available as options.

Manufacturers who used the B-Series before 1992

  • New Bus Company
  • Nothern Coach


GalleryEdit

Chevrolet Thomas 1984

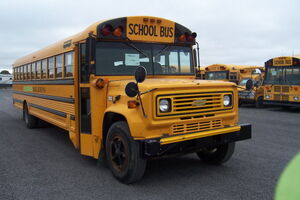

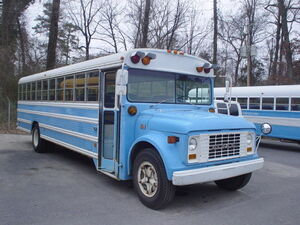

A 1971-1984 Thomas Based GMC/Chevrolet B-Series

Chevrolet Thomas 1980's

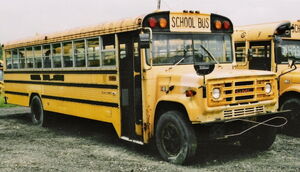

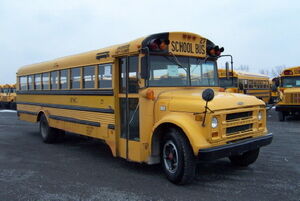

A 1985-1991 Thomas Based GMC/Chevrolet B-Series

Chevrolet Carpenter

A 1985-1991 Carpenter Based GMC/Chevrolet B-Series

GMC Superior

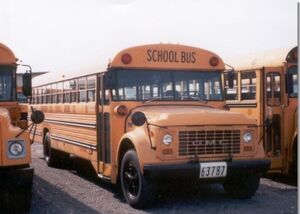

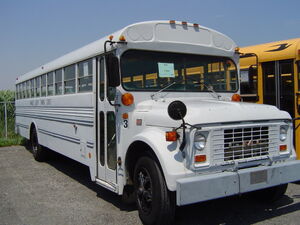

A 1970-1982 Superior Based GMC/Chevrolet B-Series

GMC Wayne 1970's

A 1970-1984 Wayne Based GMC/Chevrolet B-Series

GMC Wayne 1980's

A 1985-1991 Wayne Based GMC/Chevrolet B-Series

GMC Blue Bird 1980's

A 1985-1991 Blue Bird Based GMC/Chevrolet B-Series

GMC Blue Bird Early 1990's

A Blue Bird CV200 With the older Doors

GMC Blue Bird Late 1990's

A Blue Bird CV200 With the Newer doors





Chevrolet Carpenter 1970's

A 1971-1983 Carpenter Based Chevrolet/GMC B-Series
